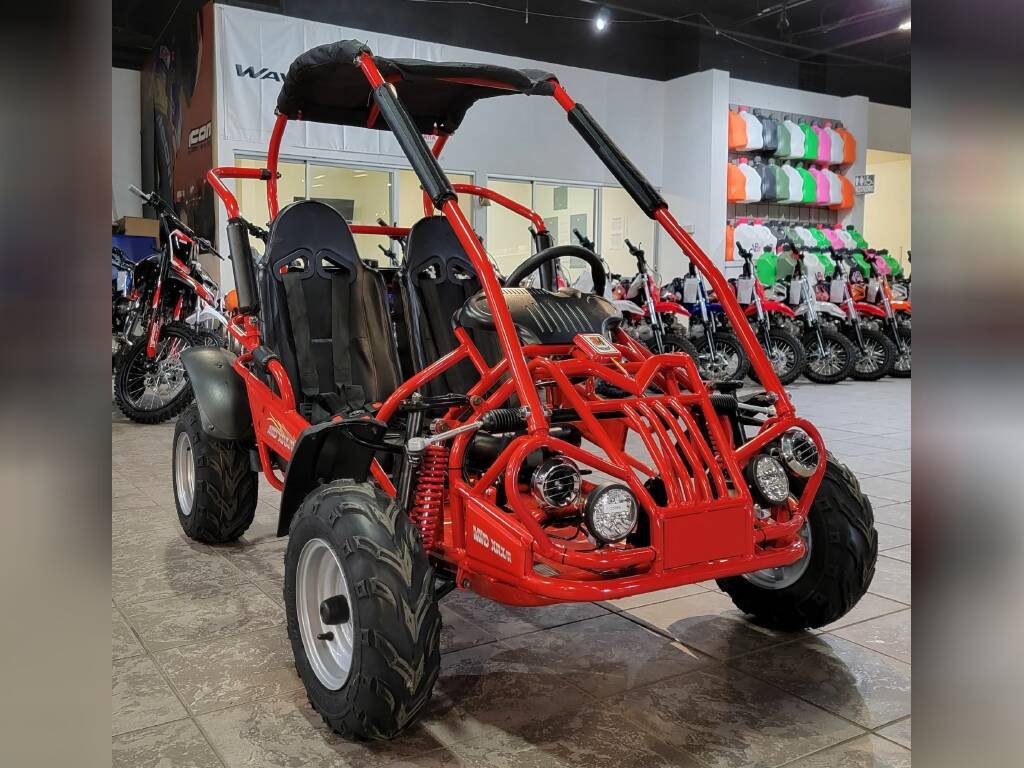

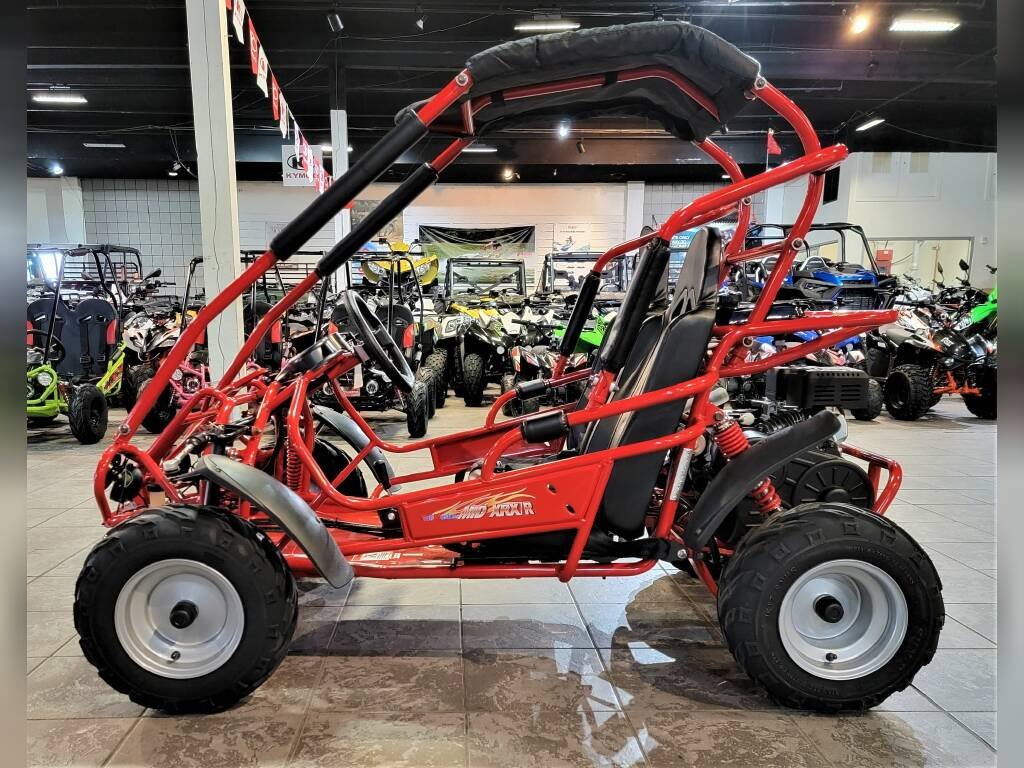

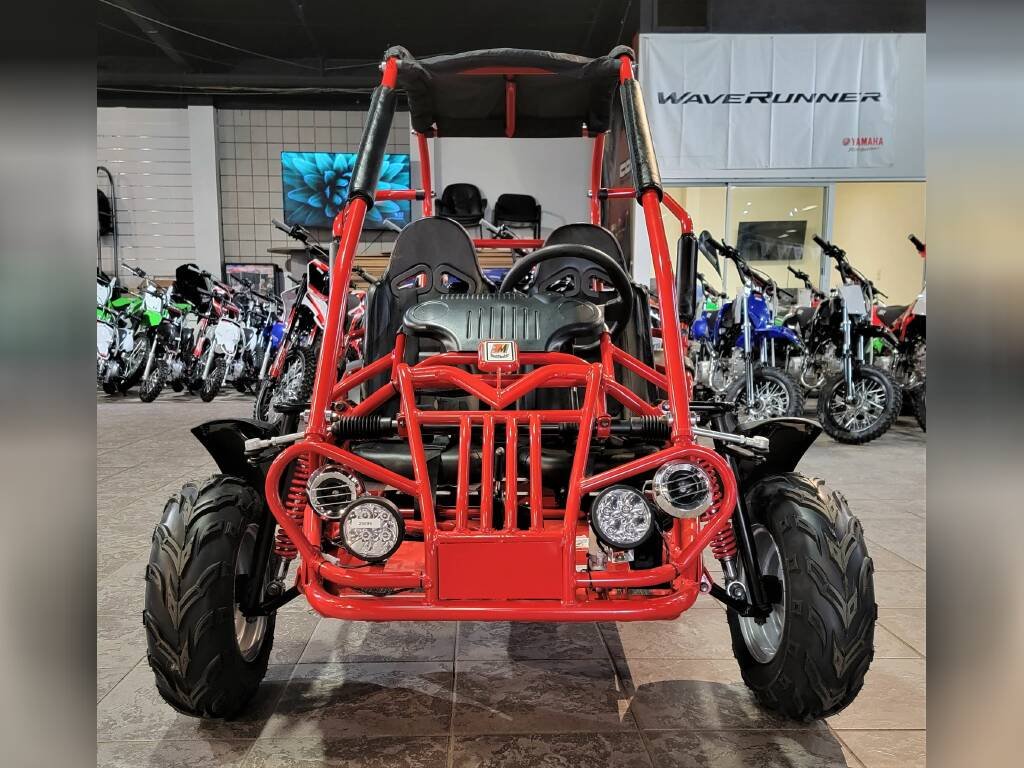

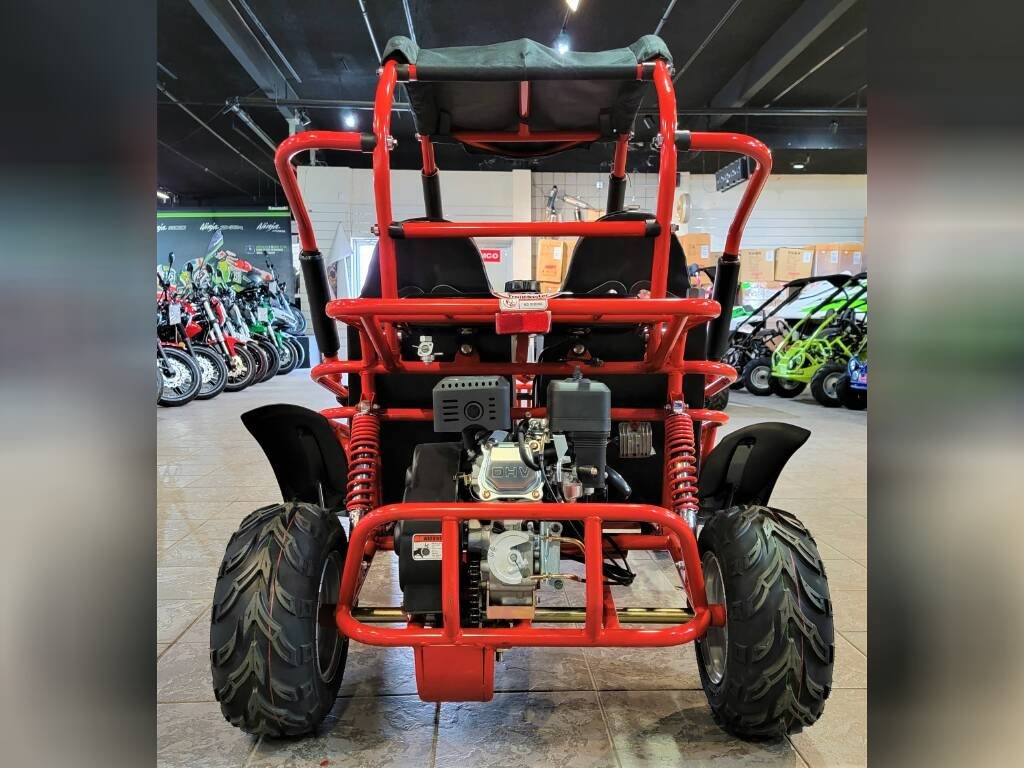

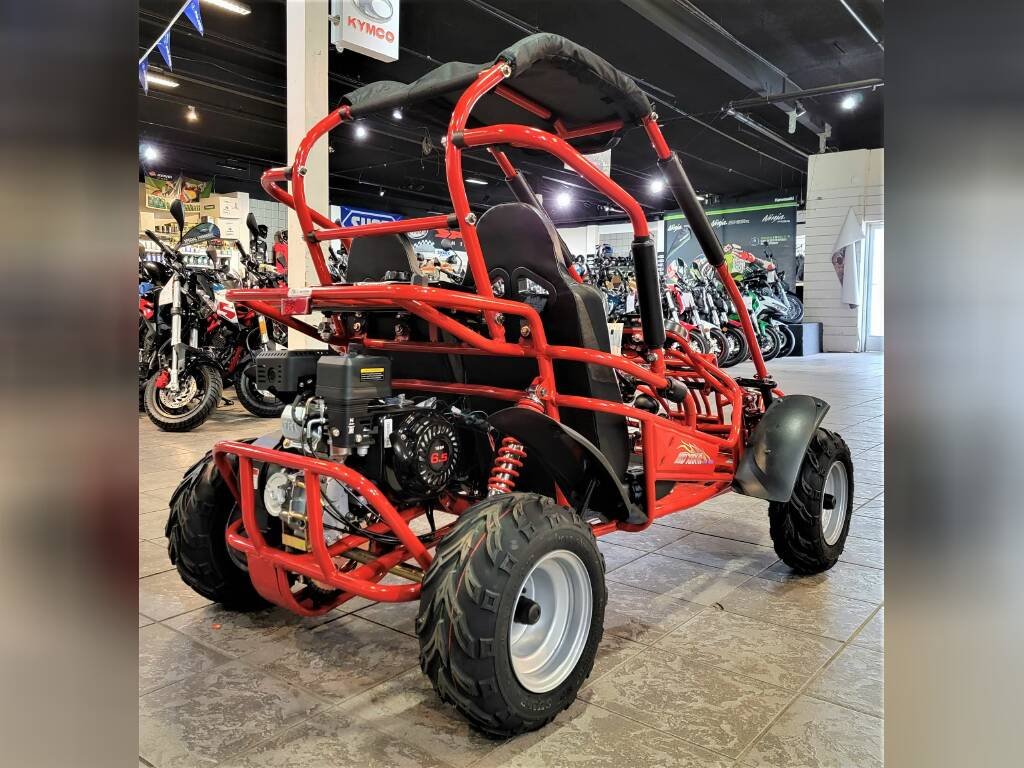

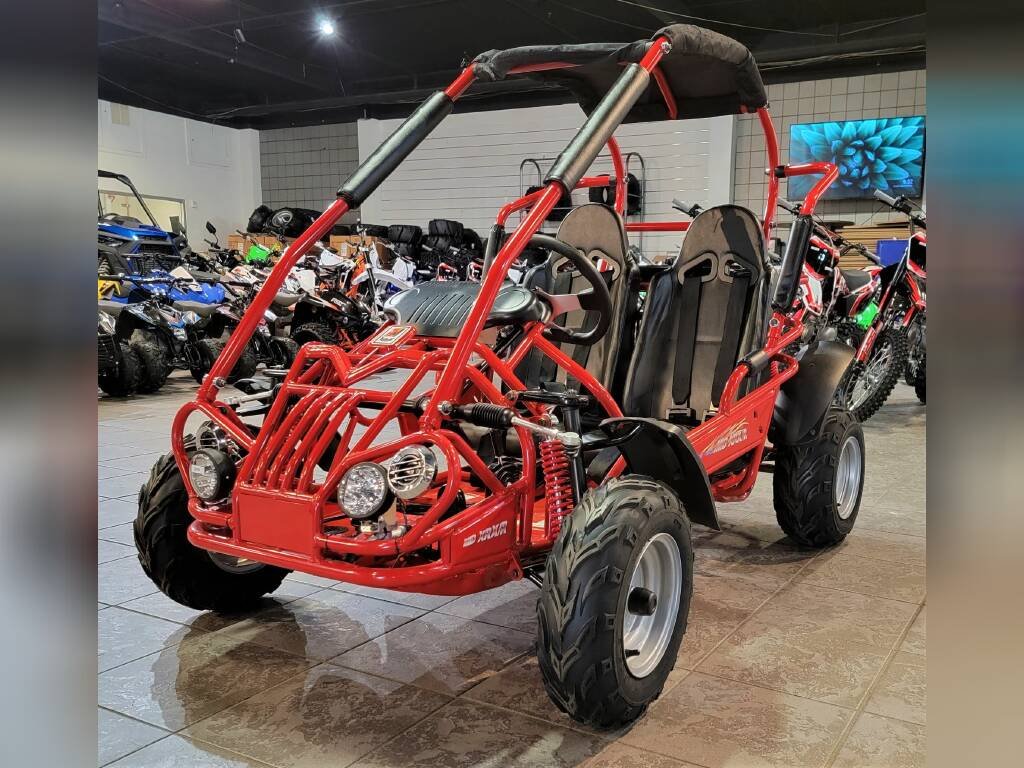

2021 TrailMaster Mid-XRX/R

Description

2021 TrailMaster Mid-XRX/R

Model: TrailMaster Mid-XRX/R

Engine: 4-Stroke, Air Cooled, Single Cylinder

Displacement: 196cc

Max horsepower: 6.3hp/3600rpm

Max torque: 9.6lb ft/2500rpm

Bore x Stroke: 2.6 x 2.1 inches

Carburetor brand: JF (RX)

Engine oil: 15W-40

Fuel Requirement: unleaded

Start System: Electric start with pull start backup

Transmission: Automatic CVT with Reverse

Final Dirve: Chain, Dual Wheel Drive

Battery: 12V 9Ah

Ignition: CDI

Brakes (front/rear): None / Hydraulic Disc

Suspension (front/rear): Dual A-arm Front / Swing arm Rear with Double Oil Damped Shock

Tires (front/rear): 16 x 6-8 / 16 x 7-8

Max speed: 31 mph approximate

Climbing: 12 degrees

Fuel Capacity: 1 gal.

Features: Horn, Dual LED headlights, Dual 5-point Seat Harnesses, Speed Limiter

Wheelbase: 48.4 inches

Max Loading: 400 lbs.

Ground Clearance: 2.8 inches

Height to seat: 10.2 inches

Pedal to seat back: Adjustable from 31.5 to 37 inches

Net weight: 330 lbs.

Gross weight: 400 lbs.

Dimensions (LxWxH): 67×43.3×51.2 inches

Shipping Dimensions (LxWxH): 57x44x26 inches
